LUM-115HMU309

LED displays

1/1

24×48 dot matrix unit

LUM-115HMU309

The LUM-115HMU309 is a 24×48 dot matrix display which can be used in a wide range of applications, including

alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these

dot matrix displays in an array, and they can be applied to a variety of display purposes. A custom LSI controller has

display data memory for two screens, and data for each screen can be written and displayed in turn.

!Applications

Light source for displays

Features

1) 24×48 dot matrix.

Shape of emitting section : "2.0×2.5

2) Dimensions : 96mm×192mm

3) Achieved high brightness by using chip

LEDs with inner lens.

4) Three-color display is possible

(red, green, and orange).

5) 1 / 24 duty dynamic scan method.

6) Ultra-thin shape of 9.2mm, light weight of

180g, and wide directional characteristics

of 100 degrees.

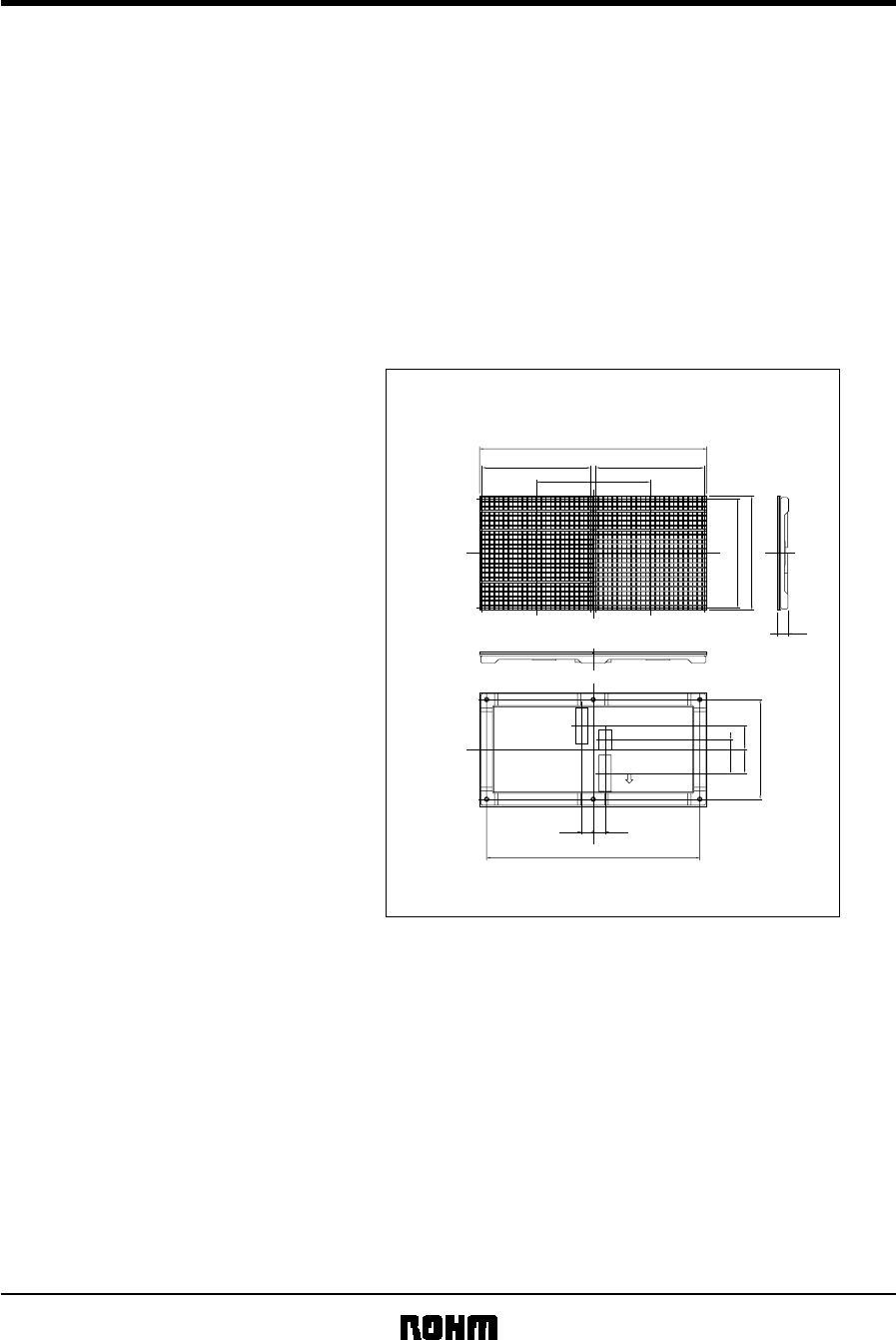

!External dimensions (Units : mm)

9.2

P4.0X23=92

P3.99X23=91.77P3.99X23=91.77

192

(10) (10)

(8.4)

(20)(20)

180

CN3CN1

113

CN2

!Specifications

For specifications, refer to “LUM unit series”.

(www.rohm.com/products/databook/dp/pdf/lum-unit.pdf)

24×48 dot matrix unit 1
